Senthil Kumar J , Kamaraj A , Kalyana Sundaram C , Shobana G , Kirubakaran G; A comprehensive review on accuracy in ultrasonic flow measurement using reconfigurable systems and deep learning approaches. AIP Advances 1 October 2020; 10 (10): 105221. https://doi.org/10.1063/5.0022154

Download citation file:

• Ris (Zotero)
• Reference Manager

Flow rates of fuel are a major control variable in the engines of airborne vehicles. Accuracy in flow rate measurements became a mandatory requirement for the testing and reliable operation of those engines. Flow rate measurement is also essential in food industries, automotive industries, and chemical industries. Flow rate measurement using ultrasonic transducers is an appropriate choice because of its unique properties when they are in contact with the gases and water medium, as well as larger diameter pipelines. Estimating the echo signal of the ultrasonic flowmeter is a challenging task; however, the processing tasks for real-time performance are mandatory for improving accuracy in flow rate measurements. This article reviews the improvement in the accuracy of flow rate measurements of liquids and gases incorporating the modern technological trends with the support of field programmable gate arrays, digital signal processors, other advanced processors, and deep learning approaches. The review also elaborates on the reduction of uncertainty in single path and multi-path ultrasonic flowmeters. Finally, future research prospects are put forward for developing low cost, reliable, and accurate ultrasonic flowmeters for extensive categories of industrial applications.

Generally, a flowmeter measures the amount of liquid, gas, or vapor moving through a pipe or conduit. The basic requirements for any flow measurement techniques are their abilities to calibrate and integrate flow fluctuation with pipes, improved accuracy, high turn-down ratio, low cost, low sensitivity to dirt particles, low-pressure loss, no moving parts, and resistance to corrosion and erosion. There are many types of flowmeters available for use in industrial automation. Most of them fall under the category of mechanical, pressure, thermal, optical, electromagnetic, and ultrasonic flowmeters. Depending on the physical parameters to be measured, the flowmeters may be used for measuring liquid or gas by applying some basic principles of physics and engineering to analyze the working methodologies of flowmeters.

Studies have concluded the usage of digital meters over analog positive feedback systems maintains appropriate flow tube oscillations. 1 The development of flowmeters based on a field programmable gate array (FPGA) provides highly stable driving signals to probe the sensors and provides accuracy in flow estimations. 2 High-speed, highly reliable, and high-precision measurements of an ultrasonic flowmeter are developed by Qi et al. 3 FPGAs can also be configured as transit-time flowmeter time measurement circuits. 4 They are also used to collect the signal and process the acquired data at high speed. 5 The waveform of the excitation signals has to be stored in the read-only memory module of the FPGA chip.

The usage of a digital signal processor (DSP) for the design and implementation of flowmeters increases the accuracy in the propagation time, which is obtained as the difference in measuring ultrasonic signals. 6 DSPs are also being programmed and configured for reducing the measurement errors to obtain improved precision in calculating accurate and reliable flow measurements. 7 The echo signal is sent into the DSP chip to be processed for obtaining the gas flow rate. 5 A complete ultrasonic gas flowmeter needs ultrasonic gas transducers, transmitting/receiving signal channel switch circuits, driving signal generation circuits, sensor components, and amplification circuits as vital components.

Deep learning architectures are inspired by the biological aspects of the senses similar to human brains. Computers and powerful graphical processing units (GPUs) can emulate such deep learning architectures. Human brains normally learn easier concepts first and hierarchically organize them to learn more sophisticated and abstract ideas. Being inspired and driven by this learning technique, investigators have devoted many efforts including multiple levels of abstraction and processed them to solve complex computational problems. Few researchers have utilized the power of deep learning architectures for flow rate measurements. 8 With the volume of data available and being trained, those deep learning architectures are configured to classify and estimate the flow rates of liquids and gases with high accuracy. 9

In this review, the intention is to provide an outline of the progressive technologies in the ultrasonic based flowmeter measurement techniques. Another significant aim is to summarize the major emerging technologies such as the usage of FPGAs as reconfigurable systems and other advanced processors to support the accuracy enhancement inflow measurements. 10 Additional noteworthy discussions are focused on the usage of deep learning and deep neural networks for the accurate flow rate estimation in ultrasonic flowmeters.

On the other hand, a large number of applications were put forward with the advancements in the technologies using modern flowmeters. It is significant to consider the accuracy in the flow rate of underlying modern technologies with analyses of the flow data observed from the systems. Table I summarizes the surveys related to the usage of various flowmeters and their applications. The summary reveals the significant contributions from those articles as well as their relevance to the proposed theme of the survey in this article.

Summary of surveys related to flowmeters and their applications.

The major contributions of this review article are listed as follows:

The evolution of a flowmeter based on the different landscapes of flow measurements is studied.

The key areas of flowmeter applications across different domains are identified from the state-of-the-art literature.

The impact of an ultrasonic flowmeter on maximizing the accuracy and performance in flow rate measurements is highlighted.

A comprehensive view of the usage of FPGAs and other processors and their significant contributions toward flow measurements are surveyed from the recent literature.

Accomplishments of flow rate measurements with the support of standard deep learning frameworks and deep neural networks are discussed from the literature.

Future research directions are highlighted in the stream of flow rate measurement with modern strategies and artificial intelligence.

This review article is organized as follows: Sec. II discusses the evolution of conventional flowmeters and ultrasonic flowmeters in the market. It also elaborates on and summarizes the growth of ultrasonic flowmeters and the impact of ultrasonic technology on flow rate measurement applications of liquids and gases. Section III summarizes the utilization of the modern technology FPGA and advanced processors for driving, supporting, and accurate computation of flow rate measurements. Section IV discusses the learning approaches dealt with the aid of deep neural networks and their impact on accuracy measurements in flowmeters. Section V elaborates on the key findings and summary of this article toward accurate flow rate measurements along with the future scope of research left as an open-end problem. Finally, Sec. VI concludes with the key impact on the society. Figure 1 shows the overall organization of this article.

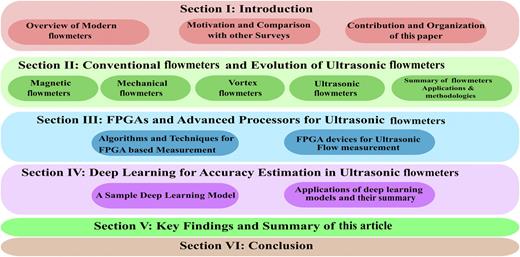

Overview of organization of this article.

In magnetic flowmeters, the measured liquid must be water-based or conductive. This makes the magnetic flowmeter one of the excellent choices for wastewater flow measurement. Magnetic meters are volumetric meters that have no moving parts. They are ideal for those choices, where we need not be exposed to the measured liquid while working on the meter. The working logic of magnetic flowmeters is based on Faraday’s law. Its main requirement is the liquid under which the test is performed should be conductive. The measured voltage is dependent on the average velocity of the liquid, the strength of the magnetic field, and the length of the conductor or the distance between the electrodes. Magnetic flowmeters are simplest in terms of their construction, and they have no moving parts. However, they work only for conducive measurements.

Mechanical flowmeters have some moving internal parts, which may not fit with specific applications such as effluent waters that carry larger particles. It may damage or obstruct the internal parts of the meters. The mechanical flowmeters have a rotational device inside such a paddle wheel or propeller. The liquid flowing through a pipe causes the rotation of the internal paddle, which creates a flow rate that is proportional to the rotational speed of the internal paddle. The faster the paddle rotates, the more the flow occurring through the pipe, which in turn sends a graduated signal to the controller. The pipe size and temperature of the water flowing through the meter are correlated with the rotational speed with a unit measurement such as gallons per minute.

In the differential pressure type of flowmeters, the flow path of liquid or gas is first blocked with a primary element and the difference between the applied pressures is measured before and after the primary element. A vibrating tube is present in the Coriolis method, in which the fluid passes through the vibrating tube. The amplitude of vibration will be proportional to the mass flow of liquid. Using an open channel or variable area type of flow measurement meters ensures to calculate the flow rate from the velocity, level, diameter, area, or depth information. All the categories of mechanical flowmeters have mechanical parts used as measuring elements, and however, the accuracy and lifetime are less due to the moving mechanical parts.

Vortex flowmeters measure the vortices, which have a sensor tab that will bend and flex from side to side as the vortex passes. The bend and flex action will then produce an output frequency proportional to the volumetric flow. In the vortex flowmeters, the amount of bending is proportional to the flow rate, and however, the accuracy is less due to moving parts in vortex flowmeters, and it also leads to a loss in signal flow during the measurement process. Particle image velocimetry (PIV) based flow measurement is used in Taylor–Couette flow pattern experimentation in Ref. 32 . It helps solve flow instabilities by considering the nonlinear dynamics of the fluids.

In this type of flowmeter, an ultrasonic signal is transmitted downstream or in the direction of the flow, while another signal is transmitted upstream. The delta or the differential time is used to calculate the velocity of the liquid in the medium. The estimated velocity is then used to calculate the volumetric flow through the pipe.

Ultrasonic flowmeters have numerous advantages compared to other categories of flowmeters. The usage of ultrasonic flowmeters will not introduce any interference inflow of liquid. It is a good appropriate option for both gas and liquid measurements. However, the measurement can be improved by incorporating high-speed processors.

Hence, the ultrasonic flowmeter is a reliable meter for liquid and gas measurements. The summary of the types of flowmeters based on the measurement is shown in Fig. 2 . The characteristics and performance of various categories of flowmeters are listed in Table II . Based on Table II , magnetic and ultrasonic flowmeters are having better performance characteristics. However, the mechanical parts in the magnetic meter make it unsuitable for gas flow measurement.

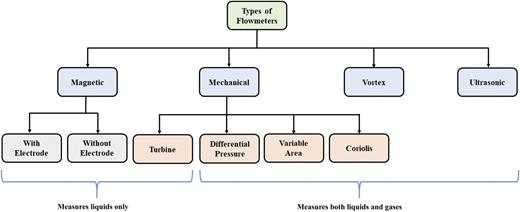

Categories of flowmeters based on the technology used for measurement.

Characteristics and performance of flowmeters.

The volumetric flow rate of liquids and gases is measured to estimate the velocity of the fluid or gas in the medium. For recording the rate of flow, various linear, non-linear, mass, and volumetric rates can be computed with appropriate flow measurement devices. The flow rate F of any gas or liquid in any medium can be expressed as

where A f represents the flow area, C f is the flow coefficient, d is the density of the fuel, and p c represents the control chamber pressure. Based on the mentioned expression, flow rates are measured for various applications and methodologies listed in Table III .

Summary of applications and methodologies used for flow measurement.

Dynamic flowmeter calibration from small to medium flow rates in aero-engine tests is done using computational fluid dynamics (CFD) and a piezoelectric stack driven double nozzle–flapper valve. 33 The echo energy integral based signal processing method is proposed with calibration experiments performed to verify the validity of maximum and minimum measurable flow rates using the FPGA and DSP. 34 An ultrasonic flowmeter was developed for applications in cryogenic conditions; by using a steady-state Coriolis flowmeter, unsteady fluctuations of imposed disturbance are measured accurately. 35 Flow measurements at high-temperatures up to 320 °C are performed using Z-mode and V-mode configurations in a metallic wedge design of a pipe containing mineral oil. 36

An ultrasonic gas flowmeter is developed with the DSP and FPGA for analyzing different flow rates using gas flow by generating echo signal envelopes in calibration experiments. 37 A 2D flexural ultrasonic array transducer is developed to validate the flow measurement using the spatial averaging method on a flexural array of ultrasonic transducers. 38 The flow rate of individual phases in gas–liquid flows in a Venturi tube using a twin-plane capacitive sensor is done to determine the liquid flow rate independent of the flow patterns. 79

Fluid flow measurement with air bubbles was done as a single-phase flow measurement using an ultrasonic flowmeter at different temperatures through PVC and steel pipes. 39 Identification of two-phase gas/liquid flow regimes using a Doppler ultrasonic sensor and machine learning approaches was done for industrial practice. 40,44 Horizontal oil–gas–water three-phase flow non-intrusive measurement was done using ultrasound Doppler frequency shift in an oil–gas–water three-phase flow test loop system to obtain acceptable accuracy. 41

Coriolis two-phase flow metering solution for nitrogen/synthetic oil mixtures errors is determined by comparing the reference single-phase measurements based on a low dimensional polynomial of the observed temperature suited to high viscosity oil/gas mixtures. 42 The evaluation method for the ultrasonic flowmeter for the rectification effect of gasotron and its error indication in different installation conditions of computational fluid dynamics are optimized. 43

The ultrasonic sensor has a wide variety of applications. It not only is limited to electronics but also has been used across all the engineering fields. Table IV shows the general applications such as wind speed measurement and direction identification, 53 irrigation field for reducing the labor and water consumption, 54 target detection in military/navy and defense purposes, 10 and distance measurements with high accuracy for vehicle movement and accident avoidance system. 80

Summary of FPGA devices used for ultrasonic flow measurement applications.

Most commonly, the ultrasonic concept is used to measure the flow rate of liquids in the pipes. It may be single-phase or double phase flow. 55 In all the liquid flow measurements, clamp-on types of sensors are preferred for that purpose. 56 The methods used for measuring the flow rate fall under any one of the Doppler 55 or time difference 49 categories. In both methods, either single or arrays of sensors are used in the application. In addition, the performance factors commonly taken into account are stability, accuracy, and speed of measurement. Some additional features are added as a value addition for the flow measurement such as jitter and offset nullifying 57 web-based flow monitoring and leakage detection. Additionally, RAM, 60 automatic gain amplifier (AGA), finite impulse response (FIR), bus interfaces, arbitrary function generator (AFG), and URT are incorporated for better processing.

The acquired data have to be processed to reach the design objective. From the review on the literature, it is observed that all of them are incorporated configurable devices such as FPGAs, 49 microcontrollers, 54 and PLDs. 58 This shows that all of them are interested in having a dynamic configuration of the processing. On the FPGA device, Xilinx 47,48 and Altera 45,52 products are used for faster processing and huge resources. The design work is carried out in VHDL, Verilog, and C programming in terms of coding. However, in certain advanced levels, soft processor cores such as MicroBlaze Embedded Development Kit (EDK) 49 and NIOS 50 are used to adopt more sophisticated algorithms such as the Kalman filter, 49 FFT, 80 split-spectrum processing, 10 and spline algorithm. 45

More interestingly, the National Instruments (NI PXIe-7965R) FPGA is used to process 1.2 GB/s data from 225 arrays of sensors to measure the velocity of the liquid, 46 in which the magnetohydrodynamics (MHD) method is adopted. In addition, a bio-inspired visual sensor (housefly) is developed as Micro-Air-Vehicles (MAVs) for unmanned automatic vehicles in defense. 47

In summary, an ultrasonic sensor is used as a multi-purpose device in engineering solutions. The solutions are implemented in programmable devices with added features. Some special algorithms are incorporated to improve the performance factors such as processing speed, accuracy, and flow rate detection. Hence, the above literature analysis proves that the ultrasonic flowmeter is suitable for commercial applications, which is adopted with programmable devices that would improve the performance in real-time. Figure 3 lists various algorithms and techniques used along with FPGA devices for ultrasonic flow measurement applications. Table IV shows the summary of FPGA devices from the literature used for ultrasonic flow measurement applications.

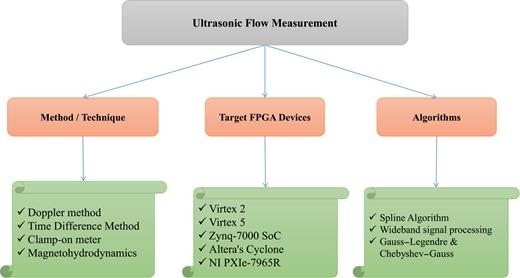

Algorithms and techniques with FPGA devices for ultrasonic flow measurement.

Deep learning neural network models such as the convolution neural network (CNN), long short-term memory (LSTM) and autoencoders are used for estimating the features from the collected data, to correlate with the flow of liquids and gases in the medium. Table V shows the summary of deep learning techniques used for ultrasonic flow measurement applications along with the supporting technologies and outcomes from the literature. Figure 4 shows a sample deep learning model followed for the flow rate accuracy estimation using the flow rate parameters on the input side of the deep neural network. Initial data would be raw data, which are subject to pre-processing, and they are shaped based on the input layer configuration of the deep neural network model. Formatted data flow through the neural network to estimate the accuracy of flow parameters in the final output layer of the model.

Summary of deep learning techniques used for ultrasonic flow measurement applications.

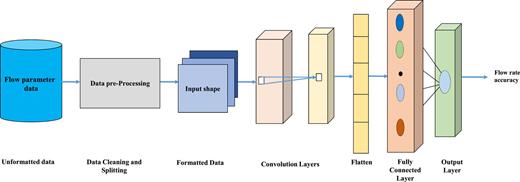

A sample deep learning model for flowmeter accuracy measurement.

A deep learning approach and impedance measurements for a multichannel complex system are used for multiphase flow characterization. 8 Label-free analysis and evaluation are performed using the deep learning-enabled holographic-reconstruction and phase-recovery frameworks. 59 For the network, saturation models and electromagnetic data are used, to test the sensitivity of the deep learning model to multiple electromagnetic components, generalization challenges, noises, and the ability to reconstruct layers of a 3D CNN. 9 Here, a U-Net deep learning network is altered to suit the application, and it is trained and validated.

Deep learning algorithm based image analysis methods are used to classify the accelerated and stable trickle flow in the trickle bed while monitoring the flow transition. 60 Droplet measurements are done by background extraction and value selection based on a threshold using video processing software. 74 Multiphase flow measurements using soft computing techniques are reviewed along with individual phase fractions and phase flow rates. 12 A seven-layer CNN is used for parameter measurement of gas–liquid two-phase flows in the small size pipe. 12 Bubble generative adversarial networks and image processing algorithms are used for extracting flow parameters from the time-averaged distribution of bubbly flow for the network providing better improvement in the quality of estimation. 61 The convolution neural network and machine learning are used to develop flow adversarial networks for discriminating flow rate and domain invariant features, and they provide better flow rate prediction. 62,75

An ensemble Kalman filter is used for updates and for testing the proposed deep LSTM approach, which shows that the predictions provide better divergence and performance. 63 A deep learning framework is developed with hidden fluid mechanics providing a simplified methodology for 2D and 3D flow measurements to extract accurate flow information. 64 Bubbly flow prediction is performed on the high and low fidelity data for exploring the simulation errors using a deep feedforward neural network to estimate the error in coarse mesh fluid dynamics for better industrial design flow prediction. 65 A deep belief network is developed for improved fault diagnostics of air-conditioning systems based on refrigerant flow using a variable flow refrigerant system. 66

A non-intrusive thermal flowmeter is developed to observe the thermal distribution of the pipe and flow rates using machine learning algorithms such as the K-nearest neighbor (KNN), DT, random forest, Ada, and gradient boost. 76 The development of bubble detecting algorithms is initiated by using the bubbly flow images from the labeled bubble dataset to provide a strong benchmark of training data and algorithms for the development of advanced bubble detecting algorithms. 67 Multichannel fluid nonlinear flow patterns are analyzed using a multivariate time series in a 50 mm diameter pipe to characterize flow patterns in the multichannel. 77 An artificial neural network (ANN)-based teaching–learning-based optimization technique measures the wellhead choke liquid flow rate using six different variables providing improved accuracy in prediction. 68

Recurrent R-U-Net and convolutional LSTM are trained to predict the accuracy in flow rates using channelized geological models to predict dynamic subsurface flows. 69 The liquid flow process is optimized using the flower pollination algorithm along with an ANN for testing of data subsets, and cross-validations are done to estimate the accuracy and optimize the liquid flow process. 70 Oil and gas well tests are done using data processing procedures through data acquired from good sensors and the combination of the recurrent neural network (RNN) with the CNN and LST network experiment on the data collected. 71 Coriolis mass flowmeter vibration signal and mass flow rate samples are fed to the LSTM, RNN, and ANN for evaluating the performance of a Coriolis mass flowmeter. 72 Gas valve leakage rate prediction is performed using a deep belief network prediction model with the available plug valve, and ball valve signals are collected using acoustic emission technology. The prediction model is proven to be superior in terms of accuracy in the prediction of the gas leakage rate. 73 2D CNNs are used to learn spatial features and to capture temporal correlations from high-speed images of combustion instability. 78

In this paper, first, the evolution of conventional flowmeters is summarized with their advantages and applications to identify the ultrasonic flowmeter as a better choice for flow rate measurement. Next, the impact of the ultrasonic flowmeter on maximizing the accuracy and performance in flow rate measurements is briefed. Following that, the usage of FPGAs/DSPs and their significant contributions toward flow measurements are surveyed from the recent literature. In addition, the support of deep learning frameworks and deep neural networks for the flow rate measurements is dealt with along with their future research prospects for developing economic, reliable, and accurate flow measurable ultrasonic meters for widespread groups of manufacturing and commercial applications.

Various industrial and commercial applications need flow measurement of liquid or gas. Based on their requirements, the mechanical, magnetic, pressure, optical, thermal, vortex, and ultrasonic meters are equipped for measurement. Since accuracy in flow measurement is the most significant factor in the present-day applications, mechanical, magnetic, and ultrasonic meters are performing better. In terms of repeatability, ultrasonic meters are performing much better as observed and summarized from the literature. The performance of the ultrasonic meter is improved by incorporating reconfigurable devices such as FPGAs, DSPs, and advanced processors for performance measurement. The computation of accuracy in flow measurement can be much improved by adopting deep neural networks in flow rate measurement. In the future, miniature bore ultrasonic sensors can be used for measuring the flow of liquid or gas using radar technology with high accuracy, stability, and repeatability for various applications.
